M20*70 ISO9001 certification quality assurance high strength hex bolt

FOB Reference Price:Get Latest Price
US $0.05-0.1 / Sets | 1000 Set/Sets Smaple free (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
R
Model Number:
M20*70
Standard:
ISO, DIN6914/EN14399/GB1228
Product name:
Large head steel structure bolt
Grade:
10.9S/12.9S
Material:
20MnTiB/35VB/40Cr
Diameter:
M16-36
Length:
50-1000 mm
Surface:
Black
Certificate:
CE/ISO9001
Set:
A bolt,a nut and two washers
OME:
OME is available
SupplyAbility
SupplyAbility:
50000 Set/Sets per Day
Packaging & Delivery
Packaging Details
Box in Pallets; And also can according to customers requirements.
Port
TianJin Port,China
Lead Time :
Shipped in 15 days after 30% payment

ISO9001 certification quality assurance high strength hex bolt

Product Description

_1.png1228





Hex bolt Parameter

Product NameHigh strength bolt with large hexagon head for steel structure
Standard GB1228 (China Standard)
Material20MnTiB/35VB
Grade10.9s
Diameter16/20/22/24/27/30 mm
Length45-200 mm
Surface Black
SetA bolt with a nut and two washer

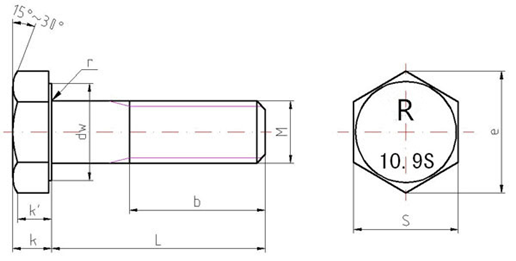

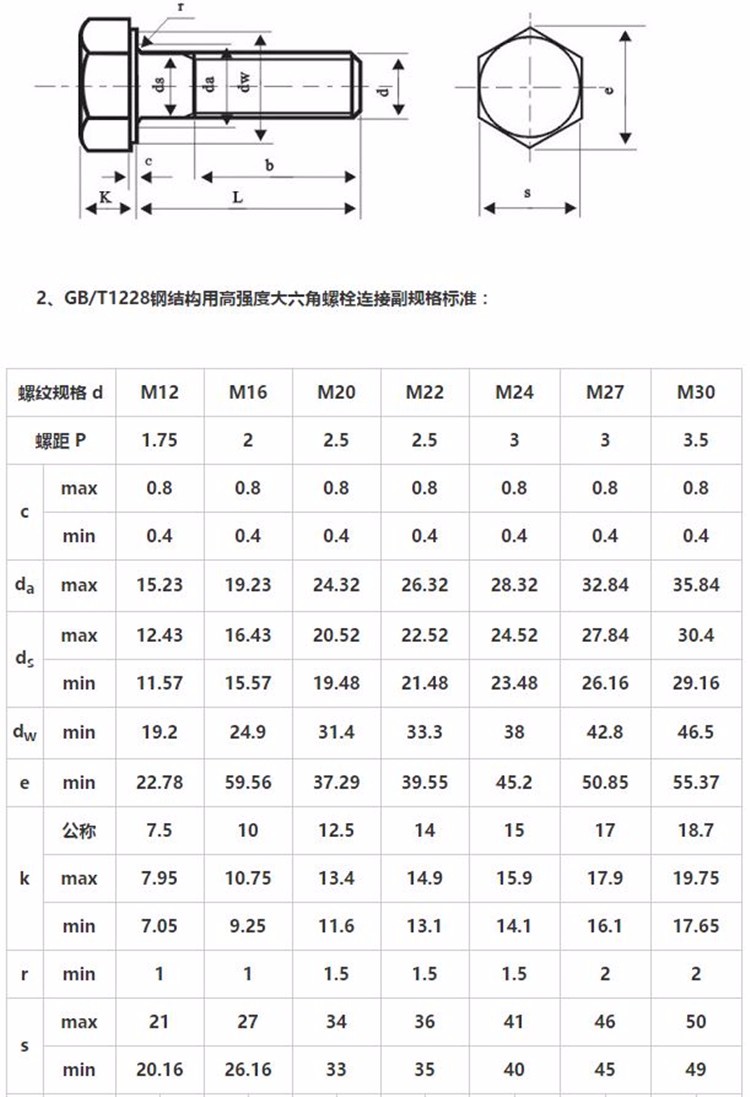

Hex Bolt Size Information:




Hex bolt Property

Tensile      MpaYield        Mpa Elongation   %Reduction of area     %
1040-1240≥940≥1042

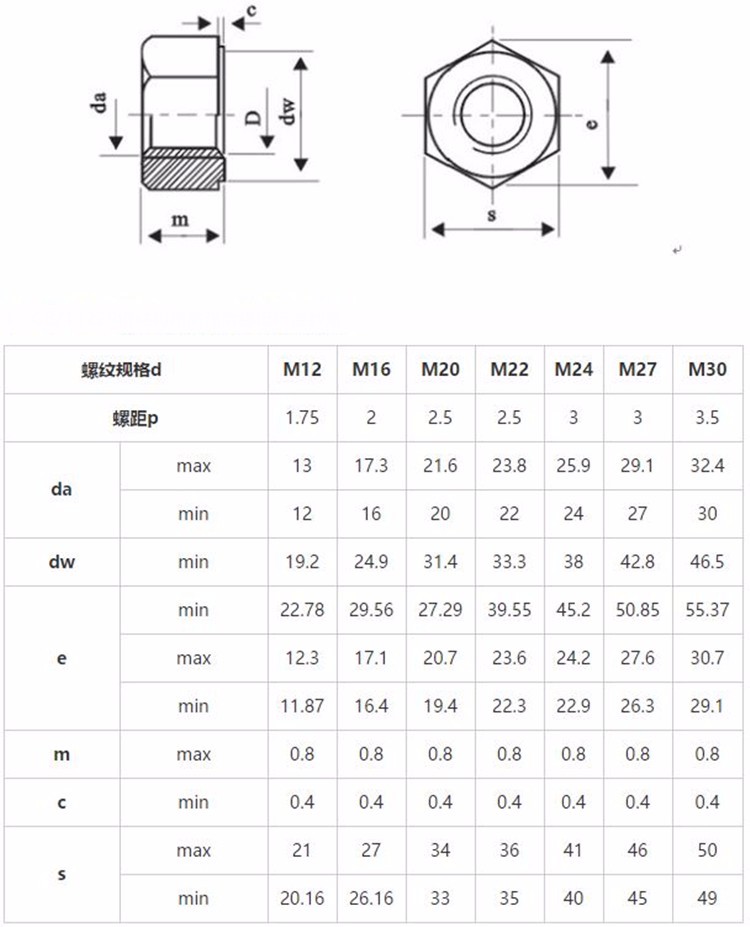

Hex Nut Size Information:

nut size_.jpg



Washer Size

washer size_.jpg





Product Test


Packaging & Shipping

Packing Details : 30KGS Carton / Box In Pallet

DIN6914 10.9S Hex Bolt

Nearest Port: Tianjin Port



QQ20170223143709

Company Information

         Hebei Jinan Standard Component Co.Ltd is a professional manufacturer for Fasteners in China.the company found in 1993.after more than 20 years developmenHex,the company become one of the biggest manufacturer in North of China.

     The company have 6 production lines for Hex bolt,and our Hex bolt have export America ,Spain,Canada,Mexico Malaysia and so on.

        Our factory workshop,Producing Ability 100tons one day.

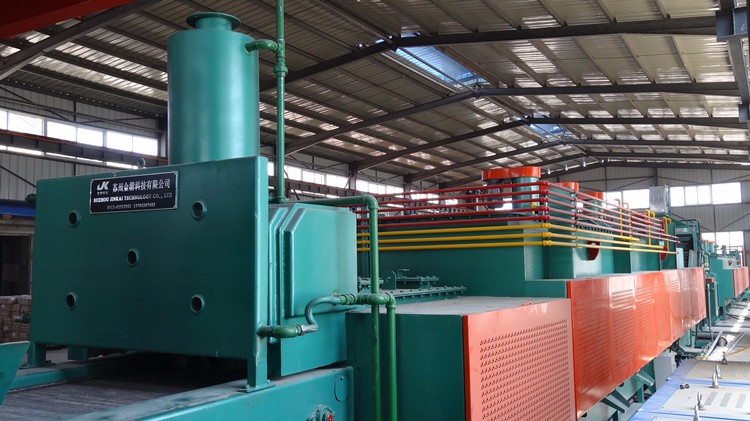

Two Heat Treated Lines For 10.9S High Strength Hex  Bolt in our facttory:

Make Hex Bolt 10.9S grade.






International Exhibition Fair Information:

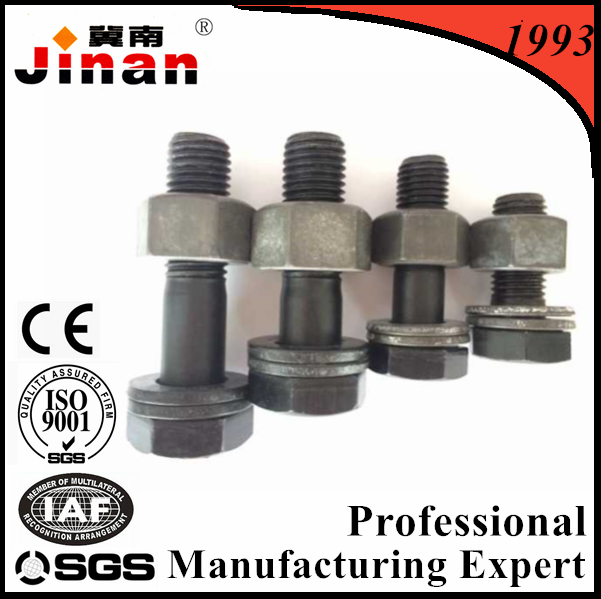

10.9S Hex Bolt for Steel Structural.

Professional for Export.
